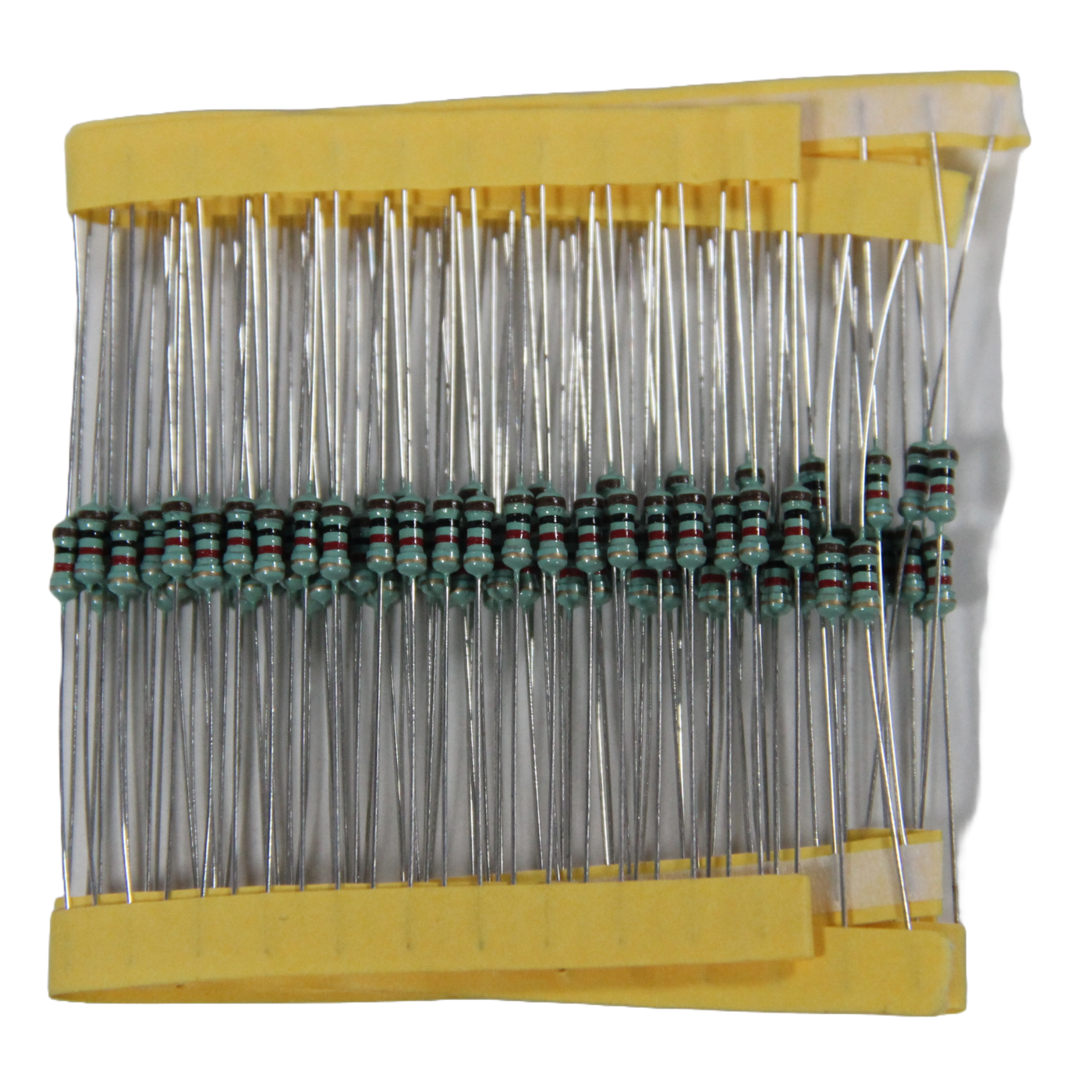

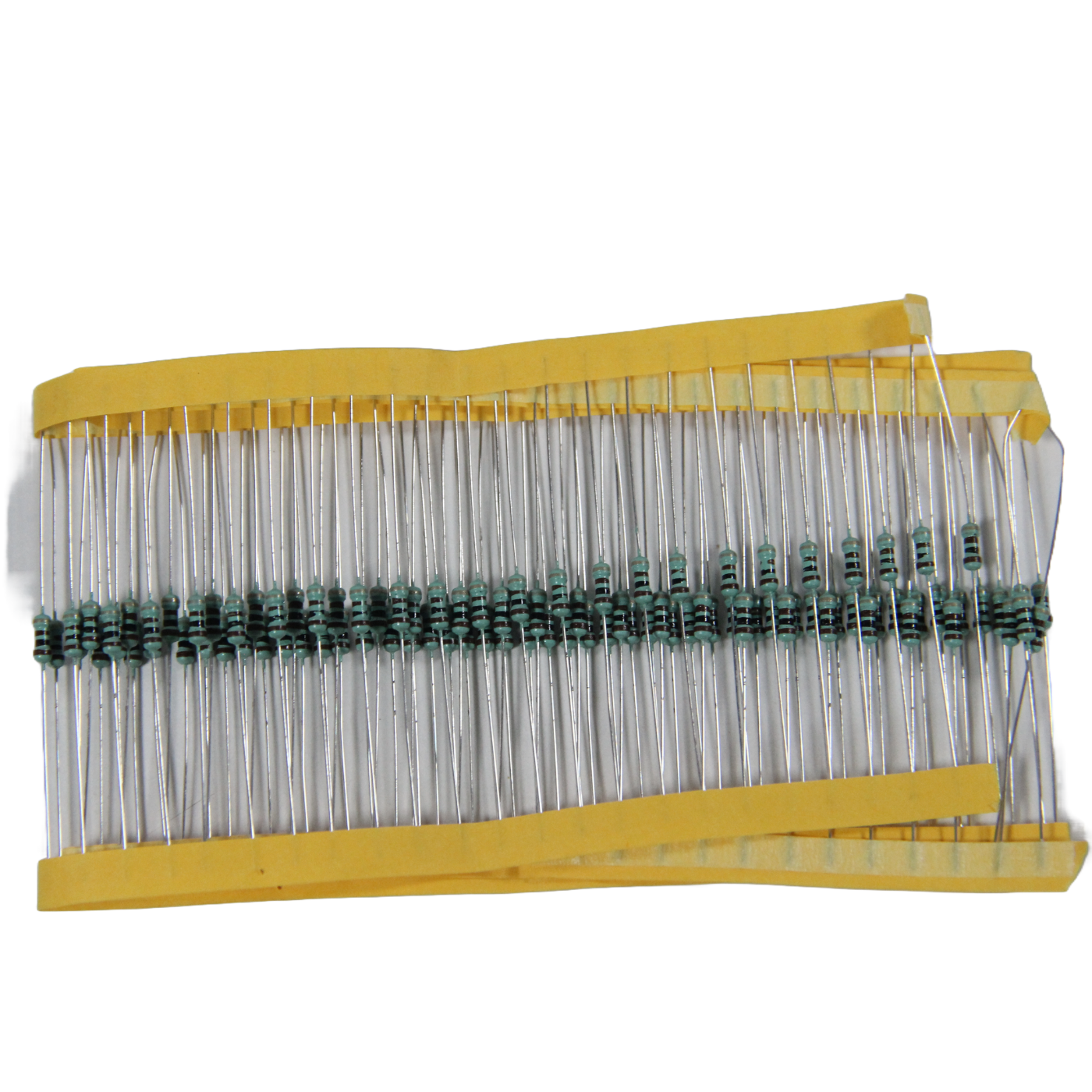

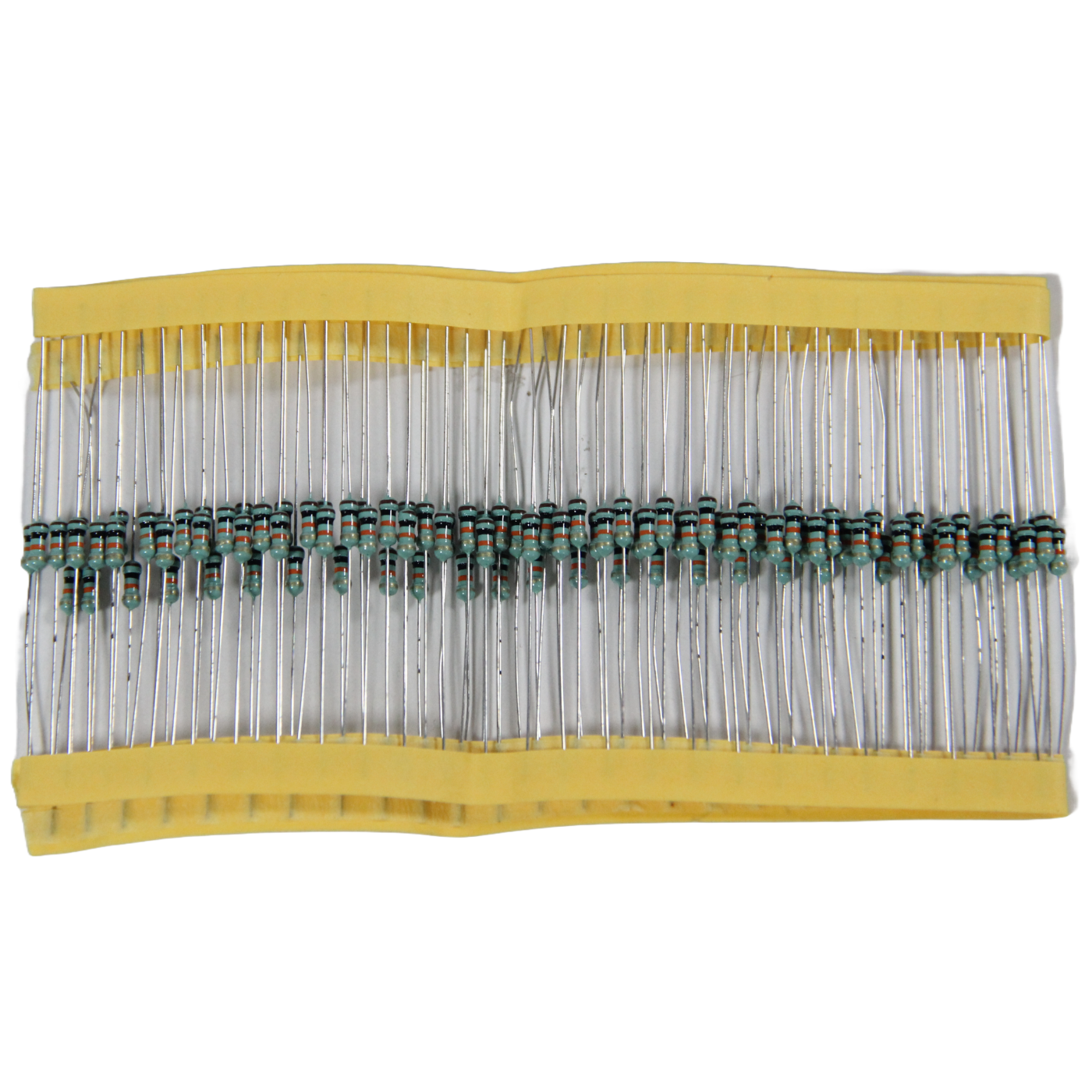

Resistors–NA

Description

It is widely used for pull-up/pull-down circuits, voltage dividers, and sensor interfacing in microcontroller-based designs.

Specifications:

• Tolerance: ±1% (precise), ±5% (general purpose)

• Power Rating: 1/8W, 1/4W (most common), 1/2W, 1W

• Material Type: Carbon film, metal film, or thick/thin film

• Temperature Coefficient: ±100 ppm/°C to ±300 ppm/°C

• Mounting Types: Through-hole (axial), SMD (surface mount)

• Operating Temperature: -55°C to +155°C

Applications:

• Pull-up and pull-down resistors in digital circuits

• Voltage divider networks

• Current limiting in LEDs and transistor circuits

• Biasing in amplifier circuits

• General-purpose use in prototyping and development
